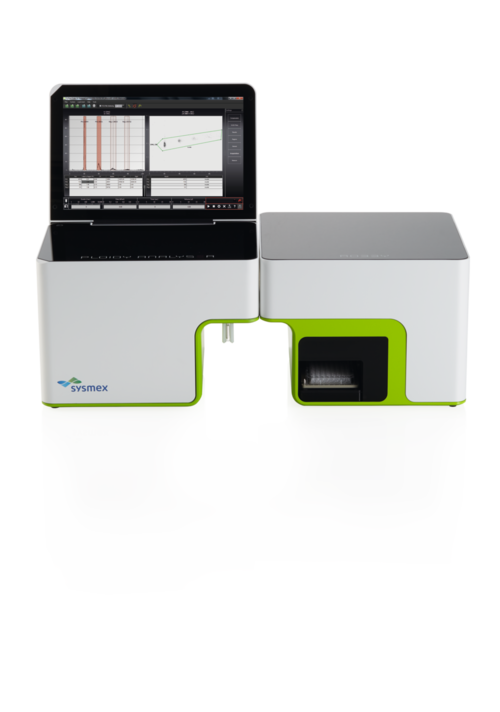

CyFlow Ploidy Analyser
Automatic Measurement of Ploidy Level and Genome Size in Plants and Animals
- Ploidy measurement in less than two minutes
- Detection of Anisoploids, Allopolyploids and Aneuploids
- Plant Genome Size and C-Value Determination
- Screening for Haplo-, Diplo-, Triplo- and Polyploids
- Detection with +/- 1 chromosome accuracy in many plants
Ploidy determinations with the CyFlow Ploidy Analyser are performed by the precise measurement of the total DNA content of individual nuclei extracted and stained with Partec CyStain reagents, which can be derived from almost any plant or animal tissue. When used in combination with Partec CyStain PI reagents, the relative genome size of plant and animal nuclei can also be determine on the CyFlow Ploidy Analyser.
The CyFlow Ploidy Analyser measures the DNA content of many thousands of individual nuclei within seconds or minutes. The result is directly displayed as a DNA histogram on the internal 15.4” colour display. The automated, real-time ploidy analysis is extremely time- and cost- efficient.
CyView: flow cytometry data acquisition and analysis software
- Windows™-based FCM software CyView for real-time data acquisition, real-time data analysis and real-time data display
- Easy set-up of experimental templates (configuration files)
- Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
| Light sources | Up to two light sources UV LED (365 nm) Nd-YAG green laser at 532 nm (30 mW) |
| Optics | Standard set-up and filters for propidium iodide (long pass filter 590 nm) and/or DAPI/SSC (long pass filter 435 nm) |
| Flow system | Quartz flow cuvette for laminar sample transport and hydrodynamic focussing True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement Completely closed fluidic system Sample port with biosafety cleaning system |
| Software | Windows™-based FCM software CyView for real-time data acquisition, real-time data analysis and real-time data display Easy set-up of experimental templates (configuration files) Flow Cytometry Standard (FCS) data format for storage of original and evaluated data Peak analysis function |
| Dimensions | Stand-alone instrument: W 385mm x H 290mm x D 280mm With Autoloading Station: W 745mm With screen open: H 528mm |
